18 Years Factory Full Closed Type Drag Chain - KQ20 Bridge type Economical Energy Drag Chain – JINAO Detail:

Cable Drag Chain – The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

Salient features include less weight, low noise, non-conductive, easy handling, non-corrosive, easy of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used for side by side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.

The Cable Drag Chain Is assemblies of single units that are snap fitted to form chain to specific length.

Stainless cable chain successfully operated in aggressive chemical environment.

At the request of the customer, we complete the cable carrier system the fixing and guide systems in the form of bearing trays, brackets, rollers, etc.

Our advantage is the development of projects and supply assembled drag chains with cables inside.

Standard cable and hose carriers have an open design and are used in general purpose applications. Heavy-duty steel cable and hose carriers also have an open construction but are suitable for more demanding environments than standard carriers. Enclosed cable and hose carriers fully encase conductors to provide more protection from debris than open designs. Multiaxis cable and hose carriers turn and flex in any direction and are commonly used in robotics applications.

Model Table

Model Inner H×W outer H*W Style Bending Radius Pitch Unsupported length
KQ 20×25 20×25 35×48 Bridge type Top and bottom lids can be opened 55.75 47 1.5m
KQ 20×38 20×38 35×61
KQ 20×50 20×50 35×73
KQ 20×57 20×57 35×80
KQ 20×65 20×65 35×88
KQ 20×70 20×70 35×93
KQ 20×75 20×75 35×98
KQ 20×100 20×100 35×123
KQ 20×103 20×103 35×126

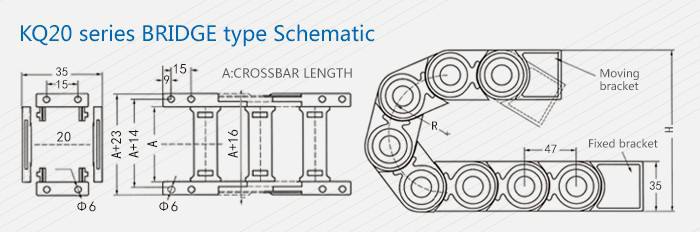

Structure Diagram

KQ20-series-BRIDGE-type-Schematic

Application

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
