2022 Good Quality Drag Cable Chain - ZQ80D Double- row Bridge type Load Bearing Plastic Cable Drag Chain – JINAO Detail:

Double rows or several rows

Installation for cable drag chain

Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed solidly

when used in a long sliding service ,it is recommended to use some supporting rollers or guide groove , it will be perfect then.

Characteristics and Applications of Drag Chains

1. The product can be used for such locations where reciprocating, of motions are required so that internally internally installed cables,oil pipes,gas tubes and water tubes can be dragged and protected.

2. Each joint of the chain can be opened up so as to facilitate repairs and maintenance.It gives low noises and is of anti-wearing while running.It can also be operated under high speed.

3. The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.

Model Table

Model

Inner H×W(A)

outer H

Outer W

 Style

Bending Radius

Pitch

Unsupported length

ZQ 80x95D

80×95

118

 2A+77 Bridge type
Top and bottom lids can be opened
Totally enclosed
Top and bottom lids can be opened		 150. 200. 250. 300. 350. 400. 500. 600 100 3.8m

ZQ 80x125D

80×125

ZQ 80x150D

80×150

ZQ 80x175D

80×175

ZQ 80x200D

80×200

ZQ80x225D

80×225

ZQ 80x250D

80×250

ZQ80x300D

80×300

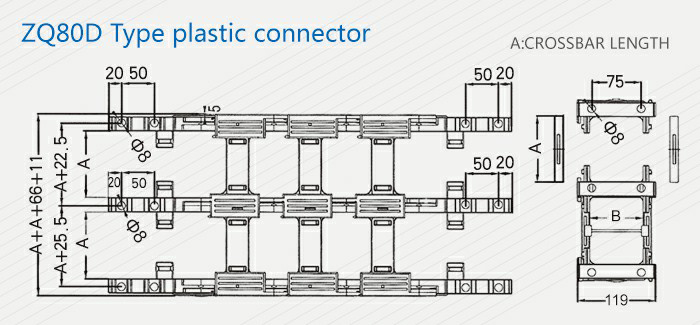

Structure Diagram

ZQ80D-Type-plastic-connector

Application

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
