High Performance Carrier Chain Cable Drag Chain - ZQ56 Bridge type Load Bearing Energy Drag Chain – JINAO Detail:

The cable drag chain looks like a tank chain and is composed of many unit links. Each link of the drag chain can be opened, which is easy to assemble and disassemble without threading. After opening the cover, you can put cables, oil pipes, air pipes, water pipes, etc. . Separators can also be provided to separate the interior space of the energy chain as required.

(1. The shape of the drag chain is like a tank chain, which is composed of many unit links, and the links can rotate freely.

(2. The inner height, outer height and pitch of the drag chains of the same series are the same, and the inner width and bending radius R of the drag chains can be selected differently.

(3. The unit chain link is composed of left and right chain plates and upper and lower cover plates. Each link of the towline can be opened, which is easy to assemble and disassemble without threading. After opening the cover, you can put cables, oil pipes, air pipes, water pipes, etc. into the towline.

(4. Separators can also be provided to separate the space in the chain as required.

Model Table

Model	Inner H×W(A)	*Outer HW**	Style	Bending Radius	Pitch	Unsupported length
ZQ 56×95	56×95	94×137	Bridge type Top and bottom lids can be opened	125. 150. 200. 250. 300	90	3.8m
ZQ 56×125	56×125	94×167
ZQ 56×150	56×150	94×192
ZQ 56×175	56×175	94×217
ZQ 56×200	56×200	94×242
ZQ 56×225	56×223	94×267

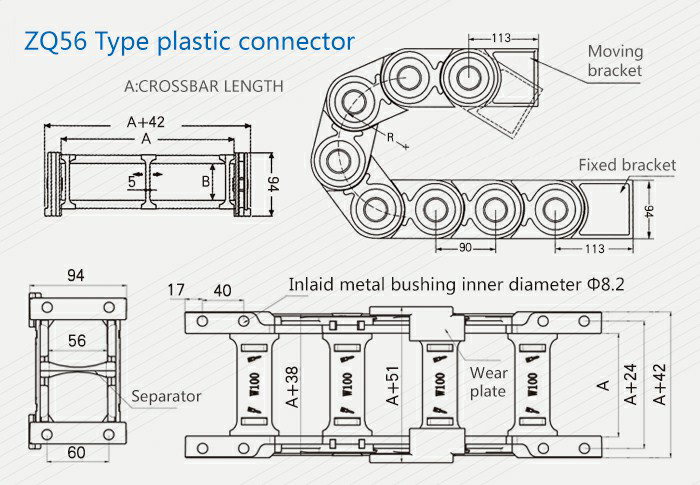

Structure Diagram

ZQ56-Type-plastic-connector

Application

1. It is suitable for use in the occasion of reciprocating motion, and can pull and protect the built-in cables, oil pipes, air pipes, water pipes, etc.

2. Each section of the towline can be opened for easy installation and maintenance. Low noise, wear-resistant, and high-speed movement during exercise.

3. Towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, door and window machinery, injection molding machines, manipulators, lifting and transportation equipment, automated warehouses, etc.
