Hot sale Cnc Chip Conveyor Belt - Scraper Type Chip Conveyor Equipment – JINAO Detail:

Scraper chip conveyor is mainly used for separation and removal of non-agglomerate and fine debris with a length of not more than 150mm in dry or wet processing. It is suitable for various chip materials. The magnetic scraper type chip conveyor is mainly suitable for the conveying of short broken steel scraps and cast iron scraps by wet processing.

Scraper chip conveyor is driven by a speed reducing motor, and the chip is driven by the chain to scrape the chips deposited on the bottom plate of the chip discharging machine into the chip collecting car. The device has reliable operation, stable performance, quantitative chip removal, no noise and long service life.

Scraper chip conveyor is provided with a permanent magnet type magnetic field on the bottom plate of the chip discharging machine based on the scraping type chip discharging device, and the chips are first adsorbed on the bottom plate and then the scraping plate is forcibly scraped out. In wet processing, the scraper chip conveyor is the preferred model to replace the permanent magnet chip conveyor.

Specifications and Equipment

Optional configuration		Optional configuration
Gear motor	0.2kw/0.4kw/0.75kw/1kw/1.5kw	1.Standard type positive, reverse, stop control
Conveyor chain distance	p=31.75mm/38.1/50.8/63.5	2.CE specifications positive, reverse, stop, and stop control
Scraper device	1 piece per six chain links
Transmission speed	0.5M-1.5M/min-50Hz	1.Manual control devic 2.Various remote control boxes
Safety equipment	KA-50	3.Various cable lines 4.Torque overload stop device
Transport elevation angle	30°-60°	5.Preventing the entry stop device

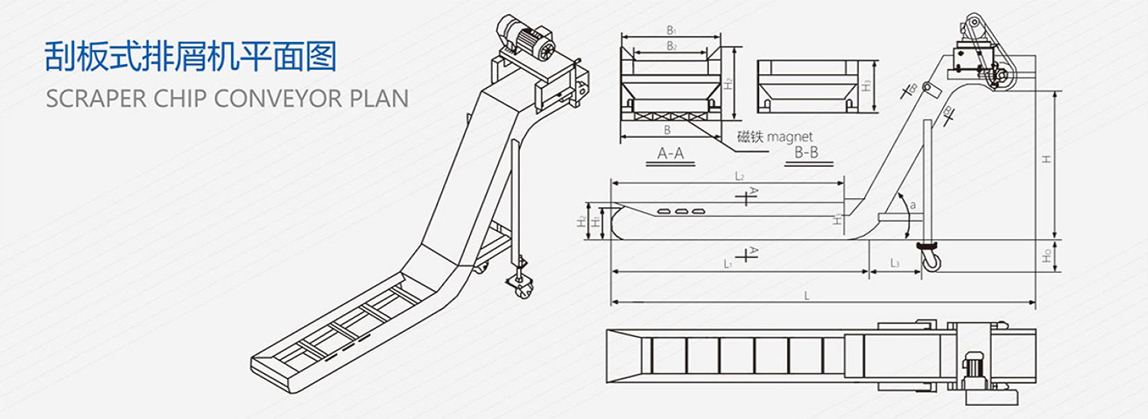

Scraper Chip Conveyor Plan

Application

Basic features of scraper chip conveyor: diversified scraper width, providing flexible collocation and effective application, sturdy scraper combination, high strength, coordination, stable and quiet action, torque limit setting, effectively reducing the problem of improper operation. damage caused. The main material is welded by integral connection and combination, and there is no leakage phenomenon.

Adopt slit plate filter, with self-cleaning brush. The two sides of the scraper are equipped with a special two-way connecting chain. The height and distribution distance of the scraper can be randomly designed, the transmission is stable, the structure is compact, and the strength is good.

Wide selection range of conveying speed, high working efficiency, and diversified effective chip removal width can provide sufficient selection range.

According to the needs of users, steel mesh recoil, scraper, eddy current separator, oil-water separator, etc. can be added to form a comprehensive filtration system to improve the surface machining accuracy of products, save coolant, and reduce labor intensity of workers. It is a widely used machine tool auxiliary. device. After the integral connection with the machine tool, it can work synchronously or independently.

It adopts integral segmentation, combined connection and integrated application to ensure smooth lubrication and durability.
