Our primary objective is usually to offer our shoppers a serious and responsible small business relationship, offering personalized attention to all of them for Energy Chain Cable, Cable Chain For Cnc, Cable Drag Chain, "Passion, Honesty, Sound service, Keen cooperation and Development" are our goals. We are here expecting friends all over the world!
OEM/ODM China Chip Conveyor Rollers - Magnetic Type Chip Conveyor Equipment – JINAO Detail:

Magnetic chip conveyor utilizes the strong magnetic effect generated by the permanent magnet material to separate the powdery, granular and iron chips having a length of less than 100 mm, the debris in the cooling medium, and adsorbed on the working surface of the chip discharging machine. Delivered to the designated station. The machine can be widely used in CNC machining machines, combined machine tools, machining centers and other mechanical processing equipment and production lines for iron filings, and can be used for dry and warm processing of iron filings.

The device adopts a closed structure, uniform chip discharge, stable operation, low noise, and can be used for transportation and lifting of iron parts, and can be used as a primary filter in combination with a purifying device.

The Main Technical Parameters

Style Working width B B1 B2 H(m) H1 H2 H3/L1 L(m) a kg/h kw l/min
SHYC150 150 220 ≥300 0-3 130 175 204 H1+≥30 (hypotenuse) User-defined 0.6-10 100 0.2-0.75 25
SHYC200 200 270 ≥350 0-5 130 175 204 0.6-30 0° 150 0.2-1.5 50
SHYC250 250 320 ≥400 0-10 130 175 204 30° 200 0.2-1.5 100
SHYC320 320 390 ≥500 0-10 130 175 204 45° 250 0.2-2.2 200
SHYC400 400 470 ≥600 0-10 130 175 204 60° 300 300
SHYC500 500 570 ≥700 0-10 130 175 204 75° 400 400
SHYC600 600 670 ≥800 0-10 130 175 204 90° 500
Note: can be designed and manufactured according to customer’s required size

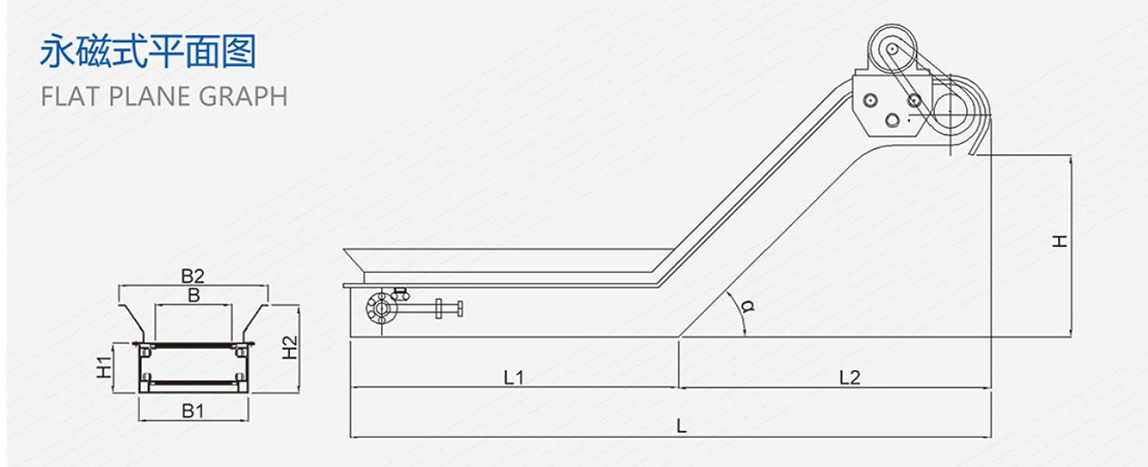

cp

Application

The magnetic chip conveyor uses the magnetic force of the strong magnetic field generated by the permanent magnet material to adsorb the chips on the working magnetic plate of the chip conveyor, or remove the granular, powdery and iron with a length of ≤150 mm in oil and emulsion. The chips are adsorbed and separated, and transported to the designated chip removal location or chip collection box. It can handle powdery, granular and iron scraps and non-rolled scraps with a length of less than 100 mm, or separate the scraps in oil and emulsion, and transport them to the designated chip removal box.

Product detail pictures:

OEM/ODM China Chip Conveyor Rollers - Magnetic Type Chip Conveyor Equipment – JINAO detail pictures

Related Product Guide:
The really abundant projects administration experiences and just one to one particular provider model make the substantial importance of organization communication and our easy understanding of your expectations for OEM/ODM China Chip Conveyor Rollers - Magnetic Type Chip Conveyor Equipment – JINAO , The product will supply to all over the world, such as: El Salvador, Nigeria, Mozambique, we are sincerely hope to establish one good long term business relationship with your esteemed company thought this opportunity, based on equal, mutual beneficial and win win business from now till the future.
    • Timely delivery, strict implementation of the contract provisions of the goods, encountered special circumstances, but also actively cooperate, a trustworthy company!
    5 Stars By Chris from Serbia - 2018.12.11 14:13
    As an international trading company, we have numerous partners, but about your company, I just want to say, you are really good, wide range, good quality, reasonable prices, warm and thoughtful service, advanced technology and equipment and workers have professional training, feedback and product update is timely, in short, this is a very pleasant cooperation, and we look forward to the next cooperation!
    5 Stars By Carey from Russia - 2017.09.09 10:18
