45 Aluminum Rod High Flexible Drag Chain Cable
Cable carriers, also known as cable tracks, are designed to surround and guide electrical cables, and pneumatic or hydraulic hoses connected to your machinery. They help reduce wear and stress on cables and hoses while also improving safety conditions and prevent entanglement on the job.
This particular type of cable chain is made from nylon and aluminum , with a cross bar made from aluminum or stainless steel . The cross bar length is customized , in order to provide more space and convenience for the customer.
Features and Benefits
1.Cross bars are aluminum
2.Flammability grade : UL V2
3.Separate mounting bracket with a tie warp plate on both sides
4.Pleasing aesthetic appearance
5.Corrosion resistant , friction resistant , great gliding application
6.Assemble in an S shape is available
Help protect and guide cables, hoses, and hydraulic and electrical lines on equipment and machinery with cable carriers for a wide variety of applications including, robotics, handling, textile industries, water treatment plants, machine tools, and much more. Our systems reduce wear and stress on cables and hoses, prevent entanglement, and improve operator safety.
Our selection of cable carriers offers a huge selection, ensuring you get the right setup for your application.
Model Table
|
Type |
Inner height |
Inner width |
Outer H*W |
Style |
Bending radius(R) |
Pitch |
Unsupported length |
|
45 Aluminum rod type |
45 |
80-400 |
63*(A+27) |
Aluminum rod type |
100.125.150.200.300 |
80 |
4m |

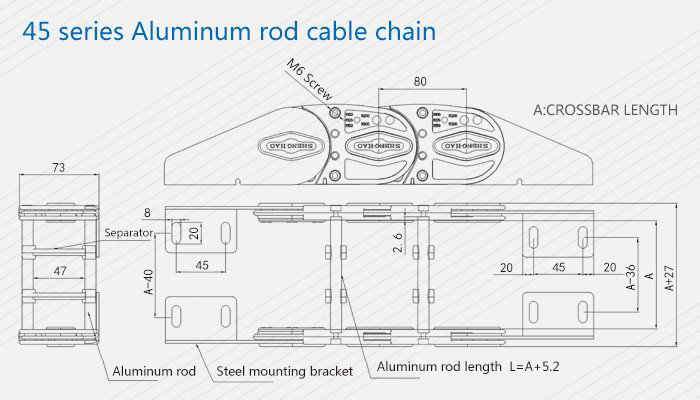

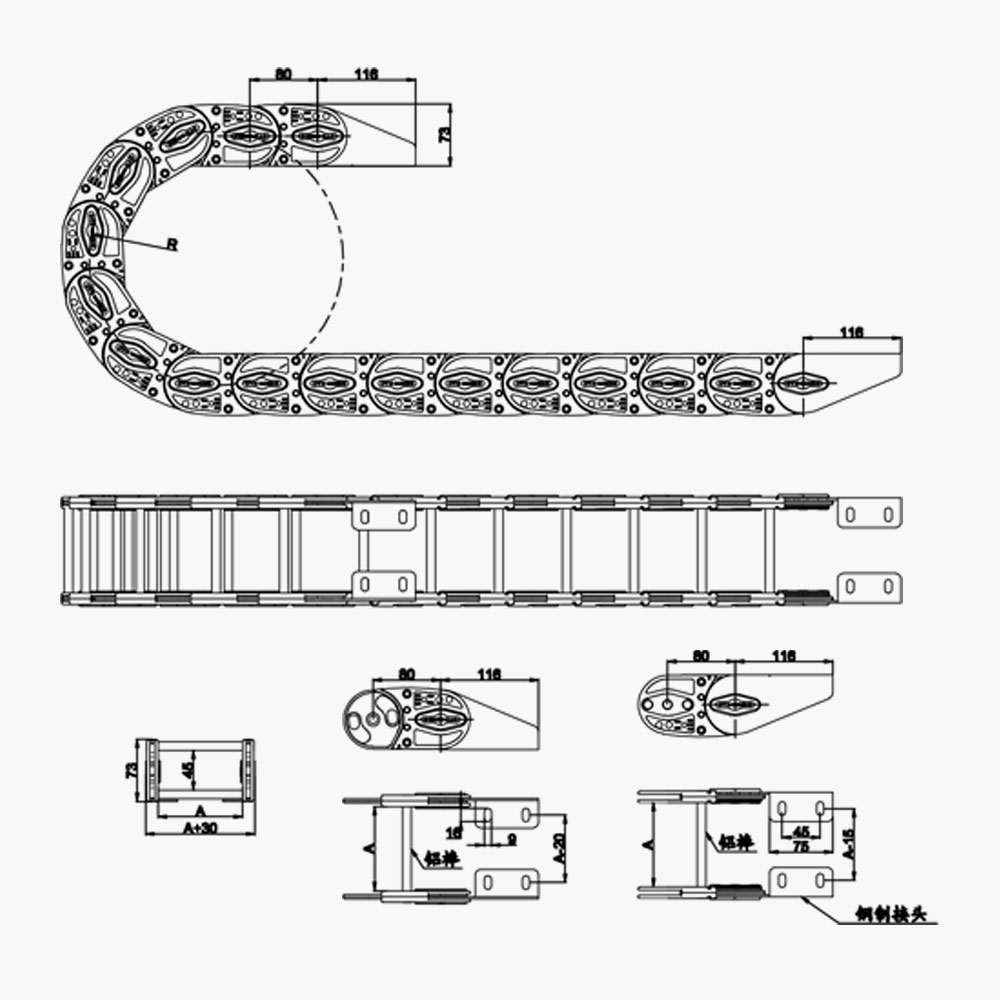

Structure Diagram
Application
1.For high vibrations and twisty situation
2.For large bending radius and changing directions
3.For large wear and high loading situation
4.For opposite direction bending
5.For longer stoke
With this cable energy chain , energy can be transported safely to a height of over 800 m (such as a crane ) or a transmission system , it works to reduce abrasion between cables and tubes.
