KQ30 Bridge type Economical Cable Plastic Drag Chain

Short Description:

Product name: KQ30 bridge type drag chain

Material: Reinforced Nylon PA6, PA66

Inner size: Height*width, 30*25,30*38,30*57,30*75,30*100,30*103mm

Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements

Style: Bridge type,top and bottom lids can be opened


Product Detail

Product Tags


Drag chain is used in reciprocating motion, which can play a role of traction and protection to the built-in cable, oil pipe, gas pipe, water pipe, etc

(1) The external shape of the towing chain is like a tank chain, which is composed of numerous unit links and rotates freely between links.

(2) The inner height, outer height and pitch of the same series of tow chains are the same, and the inner width and bending radius of the tow chain can be selecteddifferently.

(3) The chain section of the unit is composed of left and right chain plates and upper and lower baffle plates. Each section of the drag chain can be opened, which is convenient for assembly and disassembly without threading. After opening the cover plate, cables, oil pipes, gas pipes and water pipes can be put into the drag chain.

(4) Another divider can be provided to separate the space in the chain as required.

Model Table

Model Inner H×W (A) outer H*W Style Bending Radius Pitch Unsupported length
KQ 30x25 30x25 45x50 Bridge type Top and bottom lids can be opened 55. 75. 100. 125 47 1.5m
KQ 30x38 30x38 45x63
KQ 30x35 30x35 45x75
KQ 30x57 30x57 45x82
KQ 30x65 30x65 45x90
KQ 30x70 30x70 45x95
KQ30x75 30x75 45x100
KQ 30x100 30x100 45x125
KQ 30x103 30x103 45x128

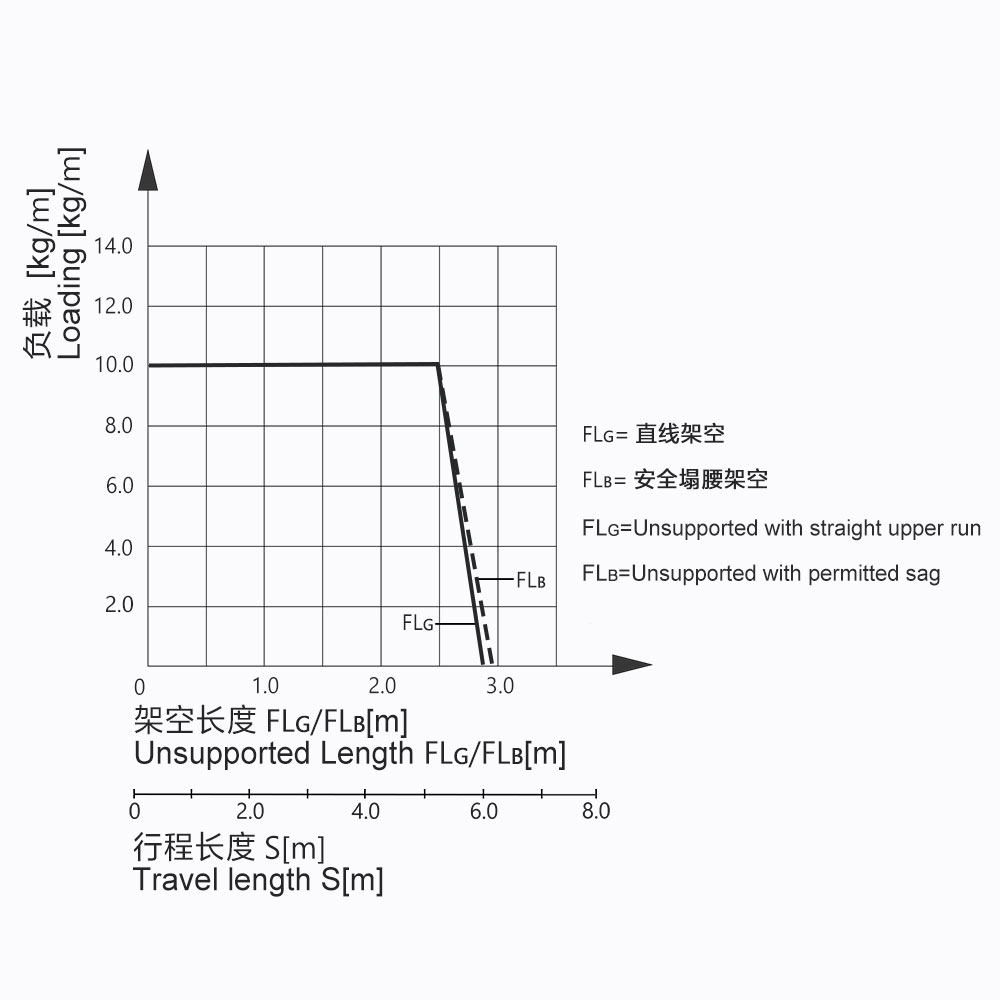

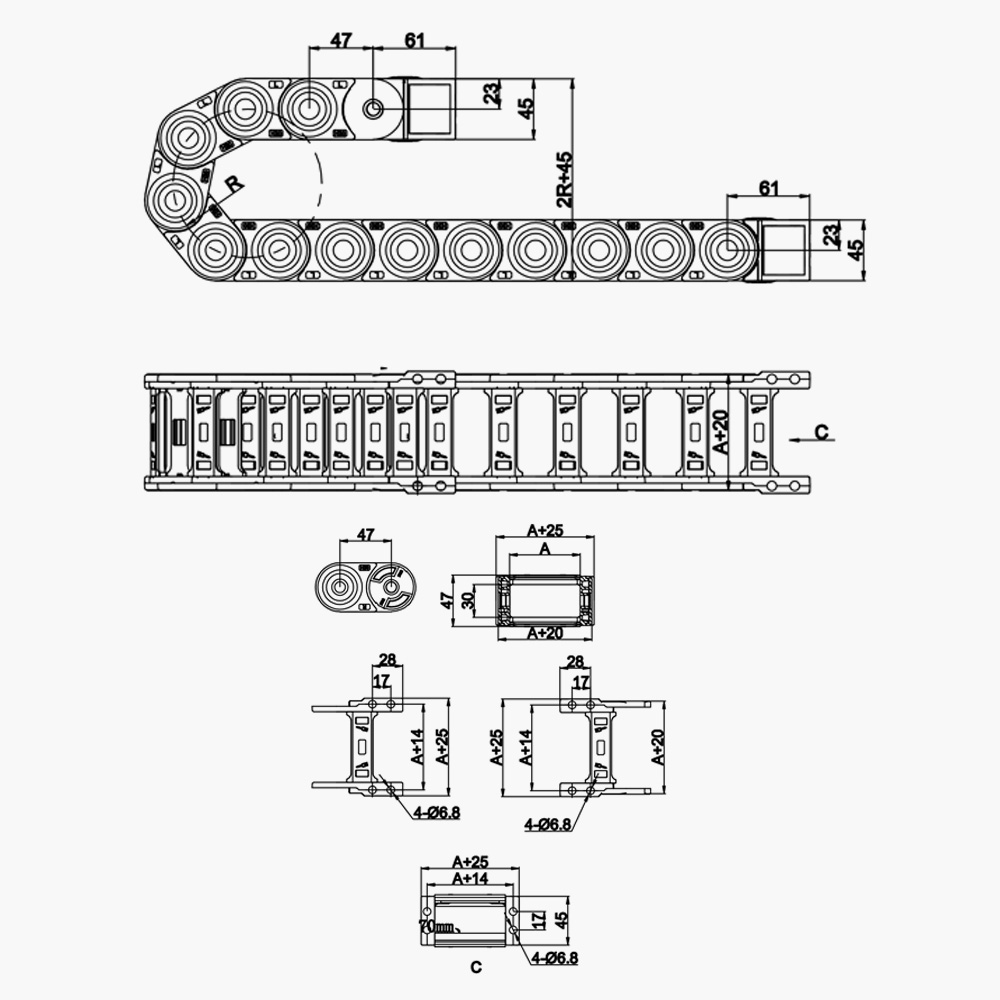

Structure Diagram



Tow chain is divided into bridge tow chain, fully closed tow chain and semi-closed tow chain according to the different use environment and use requirements.

Bridge type drag chain is used in reciprocating motion, which can play a role in traction and protection of built-in cables, oil pipes, air pipes, water pipes, etc.  Drag chain has been widely used in CNC machine tools, electronic equipment, glass machinery, injection molding machine manipulator, handling machinery, plastic machinery, lifting equipment, woodworking machinery, automobile industry, industrial vehicles, metal processing machines, machine tools, casting machinery, port equipment and other industries.
