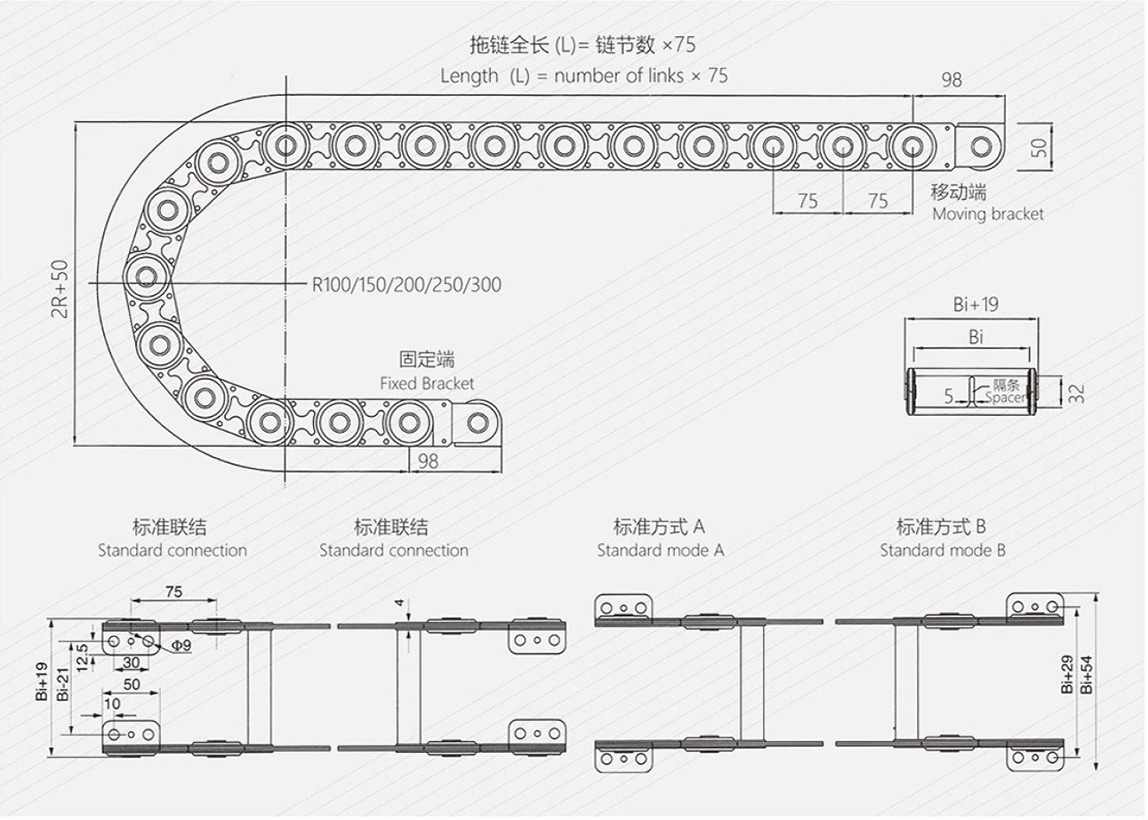

TLG steel drag chains can carry a large number of cables and tubing with large weight. The free suspension (allowing no support wheels) has a large length. The support plate can be made according to customers' requirements. It is suitable for CNC machine tools and moving machinery. The bending radius is 75-600mm, the height of the chain plate is 50-150mm, and it can be arbitrarily selected.
The TLG steel drag chains has a maximum stroke of 15 meters. Applicable to all transmission methods, it can be lengthened and shortened at will. In addition, the bending radius can be changed by changing the pin.
The height of the chain plate, that is, the height of the support plate, is determined by the maximum diameter of the cable. When the machine is running at maximum, if the width of the drag chains exceeds 300mm, and the length of the drag chains exceeds 4m, it should be considered for stability reasons. Increase the number one specification of the drag chains.
Cable and hose carriers are flexible structures made of links that guide and organize moving cable and hose. Carriers enclose the cable or hose and move with them as they travel around machinery or other equipment, protecting them from wear. Cable and hose carriers are modular, so sections may be added or removed as needed without specialized tools. They're used in many settings, including material handling, construction, and general mechanical engineering.
steel cable drag chain
Silver steel cable carrier
Cable Drag Chain Protect Wires
Moving Cable Protection
full closed custom made steel drag chain carrier
Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
