TL125 Steel Cable Track For Cnc

Short Description:

TL drag chains are mainly consisting of chain plate (top quality stainless steel with chromium plated), supporting board

The theme of TL series drag chain is composed of chain plate (high quality steel plate chrome plating), support plate (aluminum alloy), shaft pin (alloy steel) and other parts, so that there is no relative movement or distortion between cable or rubber tube and tow chain.


Product Detail

Product Tags

TL drag chains are mainly consisting of chain plate (top quality stainless steel with chromium plated), supporting board

The theme of TL series drag chain is composed of chain plate (high quality steel plate chrome plating), support plate (aluminum alloy), shaft pin (alloy steel) and other parts, so that there is no relative movement or distortion between cable or rubber tube and tow chain. Chain plate after chrome plating treatment effect of the novel appearance, reasonable structure, high strength, rigid ametabolic, easy installation, use and reliable, easy to tear open outfit, especially the product USES the high strength wear resistant materials, alloy steel as the shaft pin, improve the wear resistance strength, bend more flexible, less resistance, reduce the noise, which can guarantee long time use not deformation, not prolapse. Due to its exquisite appearance, this product can greatly enhance the overall artistic aesthetic effect of machine tools and equipment, and enhance the competitiveness of China's machine tools and mechanical equipment in the international market.

Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

Model Table

Type TL65 TL95 TL125 TL180 TL225
Pitch 65 95 125 180 225
Bending radius(R) 75. 90. 115. 125. 145. 185 115. 145. 200. 250. 300 200. 250. 300. 350. 470. 500. 575. 700. 750 250. 300. 350. 450. 490. 600. 650 350. 450. 600. 750
Min/max Width 70-350 120-450 120-550 200-650 250-1000
Inner H 44 70 96 144 200
Length L Customized by the user
Max bore of support plate 35 55 75 110 140
Rectangular hole 26 45 72

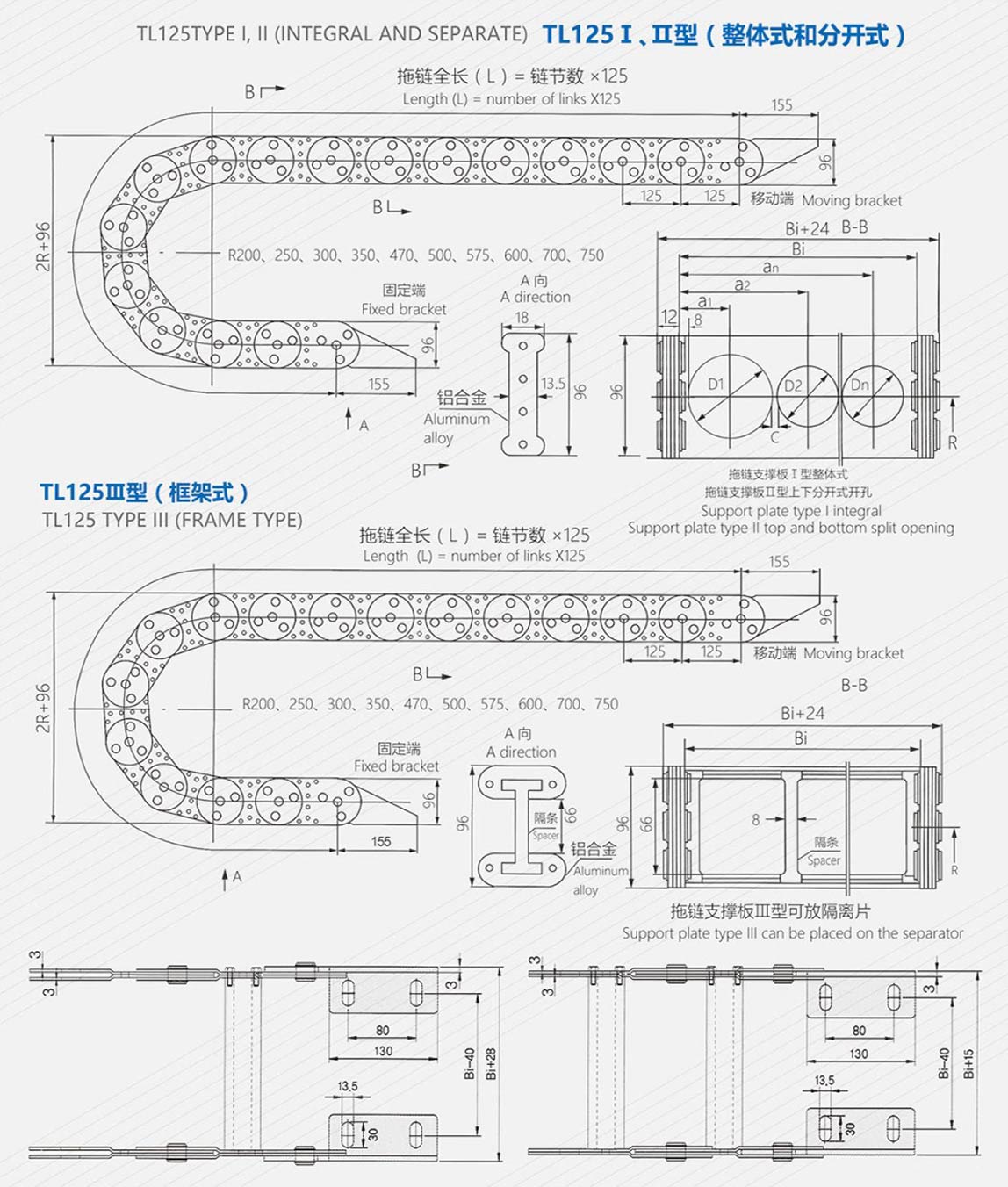

Structure Diagram

TL125

Application

Steel Cable drag chain is suitable for the CNC machine tools, machining centers, automated machinery and production lines and other kinds of machine tools, robots, transport machinery, measuring instruments, handling device and other liquid drive controlas a wire, cable, gas hose protection device, can take on machine tools, machinery and equipment moving parts run harmoniously, can play a safety protection and the ability to guide.
