TL95 Steel Flexible Cable Track

Short Description:

TL drag chains are mainly consisting of chain plate (high quality stainless steel with chromium plated), support plate (aluminium alloy) and shaft (alloy steel ), etc. There is no relative motions between the cables/rubber hoses and the drag chains, giving no deforming or twists.


Product Detail

Product Tags

TL drag chains are mainly consisting of chain plate (high quality stainless steel with chromium plated), support plate (aluminium alloy) and shaft (alloy steel ), etc. There is no relative motions between the cables/rubber hoses and the drag chains, giving no deforming or twists. The chromium plated chain board has very nice-looking appearance and has very rational construction and flexible and high strength. It is reliable and easy to operate, install, dismantal or assemble. It is worthwhile mentioning that the anti-wearing performance has been improved greatly due to wear resistant material and alloy pin shaft are used.The product is flexible to bending and has low resistance, giving low noises. It can be used for a very long period of time without any deformation or handing down.

Feature

1)Offers high strength/rigidity and excellent heat resistance.

2)TL Series features the best protection thanks to stay holes that have been finished to the diameter of the cables.

3)The drag chain can adapt to max. Moving speed of 40m/sec.

4)When at the max moving speed, the sound pressure of noises shall not be greater than 68 db.

5)The service life of the drag chain shall not be less than 1 million times(reciprocating).

Model Table

Type TL65 TL95 TL125 TL180 TL225
Pitch 65 95 125 180 225
Bending radius(R) 75. 90. 115. 125. 145. 185 115. 145. 200. 250. 300 200. 250. 300. 350. 470. 500. 575. 700. 750 250. 300. 350. 450. 490. 600. 650 350. 450. 600. 750
Min/max Width 70-350 120-450 120-550 200-650 250-1000
Inner H 44 70 96 144 200
Length L Customized by the user
Max bore of support plate 35 55 75 110 140
Rectangular hole 26 45 72

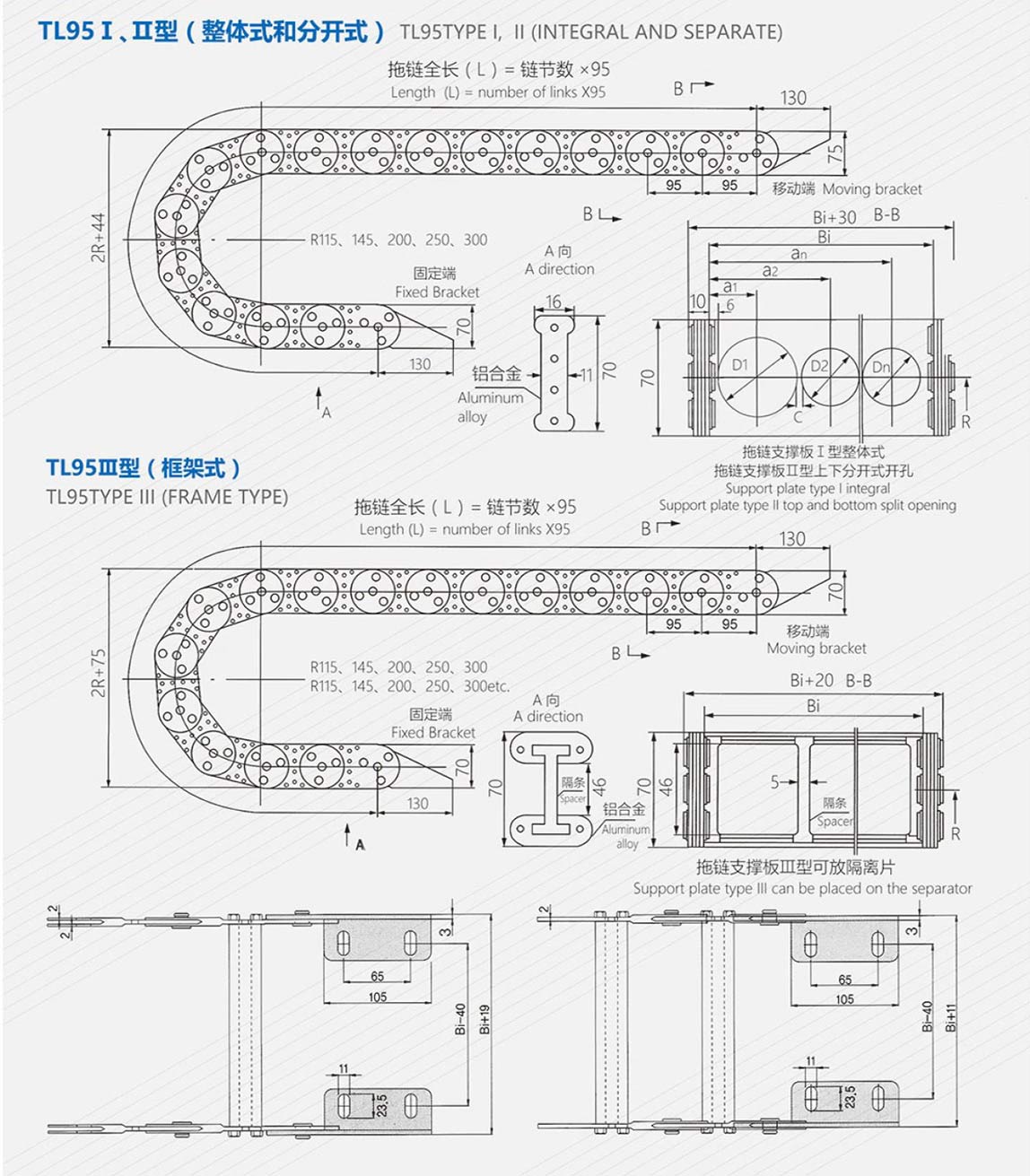

Structure Diagram

TL95

Application

The product is flexible to bending and has low resistance, giving low noises. It can be used for a very long period of time without any deformation or handing down. The product is nice-looking, which makes the machine tool unit nicer looking as a whole and makes the machine tools and machineries more competitive in the international market.
